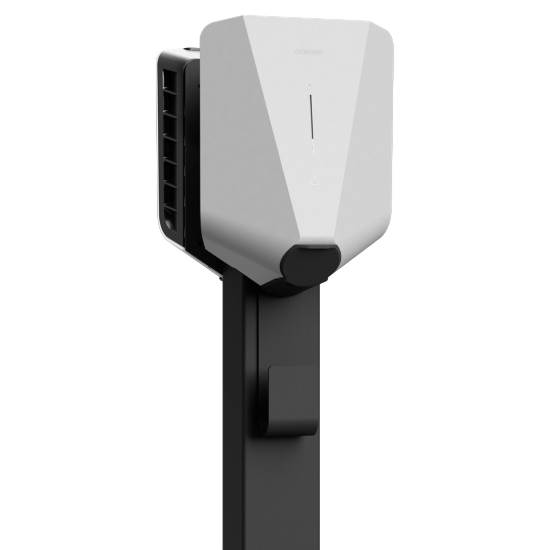

Easee Base 2-Way Charger Post (90323)

Name: Easee Base 2-Way Charger Post (90323)
Brand: Easee
SKU: 90323
Price: 278.00 GBP
Availability: InStock

SKU: 90323

View all EV

£278.00

Qty:

Mount two Easee One or Easee Charge EV chargers back-to-back with the Easee Base 2-Way mounting post. This sturdy post provides a neat solution for dual charging points, featuring an integrated Power Rail for easy wiring.

Dual Charger Mount: Securely holds two Easee chargers back-to-back on a single post.
Integrated Power Rail: Simplifies wiring with a connection box inside, supporting series connection to other posts, according to the installation documentation.
Robust Construction: Durable materials ensure longevity, includes adapter plate for standard foundations.

Why We Recommend This Product: The Easee Base 2-Way is perfect for creating dual charging stations efficiently using a single post foundation. For single or quadruple mounting, see the 1-Way or 4-Way Base.

Attribute 1 *

Description
Specifications
Data Sheets
Delivery

Easee Base 2-Way (90323): Robust Mounting Post for Two Easee EV Chargers

Create a convenient dual charging station with the Easee Base 2-Way mounting post. Designed specifically for the Easee ecosystem, this sturdy post allows you to mount two Easee One or Easee Charge EV chargers back-to-back. It's an ideal solution for shared driveways, small office car parks, or any location needing two adjacent charging points without multiple wall installations.

Efficient Dual Charger Setup

This 2-Way configuration of the modular Easee Base system provides mounting plates for installing chargers on opposite sides of the central column. According to the installation guide, this allows for a compact and efficient setup, serving two parking bays from a single foundation point, saving space and installation costs compared to two separate posts. Pair this with an aluminium charging sign.

Simplified Wiring with Integrated Power Rail

Installation is streamlined thanks to the built-in Power Rail connection box located inside the post. This provides dedicated terminals for the incoming power supply (up to 25mm² cables) and the connections to both chargers (up to 6mm² cables per charger). The Power Rail design also facilitates daisy-chaining power to subsequent posts if required, as mentioned in the product documentation.

Durable and Adaptable Installation

Constructed from high-quality materials for durability, the Easee Base is built to last. An included adapter plate ensures compatibility with standard 160x160mm centre-to-centre foundations, making groundwork straightforward. The column itself offers installation flexibility, allowing for rotation in 45° increments to achieve the desired charger orientation, as shown in the guide.

Why LAMPS Recommend This Product

The Easee Base 2-Way is highly suitable for:

Mounting two Easee One or Easee Charge chargers efficiently on one post.
Locations requiring adjacent charging points, such as shared drives or small car parks.
Installations where simplified wiring and potential series connection are advantageous.
Robust, free-standing charger mounting away from walls.
Need to mount just one, or up to four chargers? See the Easee Base 1-Way or Easee Base 4-Way.
Pair with the Easee Power Rail for smooth power management when using two chargers on a single post.

Technical Specifications Overview

Based on the Easee Base installation guide:

Model: Easee Base 2-Way (90323)
Capacity: Mounts 2 x Easee Chargers (back-to-back)
Includes: Column, Adapter Plate, Power Rail, 2x Mounting Plates, Fixings
Foundation Compatibility: 160x160mm c/c (Adapter Plate) or 70x70mm c/c (Column Base)

Requires suitable mechanical foundation for installation. Chargers not included.

Establish Your Dual Charging Point

Opt for the Easee Base 2-Way for an elegant and efficient dual charger installation. Pair with two Easee chargers and ensure correct electrical cabling and groundwork.
