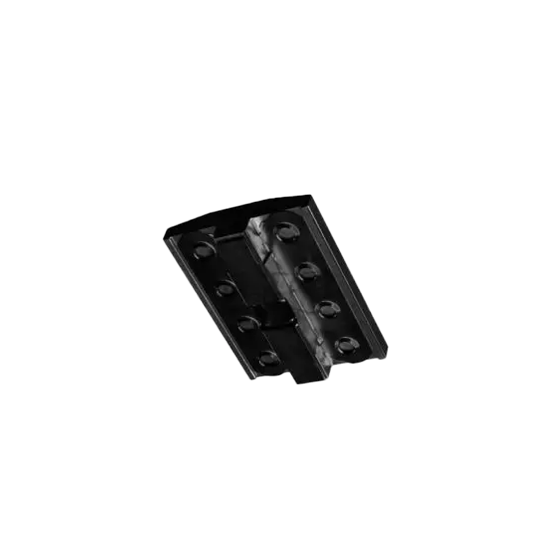

Esdec Universal Mid Clamp Bonding Black (1003022-B): Efficiency & Aesthetics for UK Solar PV
For professional solar PV installers, the Esdec Universal Mid Clamp Bonding Black (1003022-B) represents a significant leap forward in mounting technology. This premium anodised black aluminium mid clamp is engineered to streamline installations, reduce component count, and deliver a visually superior finish. Designed for universal compatibility with solar panels featuring 30-45mm frame heights, it’s an indispensable component for efficient and compliant solar mounting systems.
Integrated electrical bonding through a dedicated grounding pin means you can achieve secure electrical continuity without additional clips or wires, saving crucial time and labour on every project. As a trusted part of the Esdec ecosystem, this mid clamp contributes to robust, long-lasting, and MCS-compliant solar installations across residential and commercial sectors.
Key Features for Professional Installers
- Integrated Bonding: Features a built-in grounding pin for direct electrical continuity, eliminating the need for separate bonding components and speeding up installation.
- Universal Panel Compatibility: Designed to securely fasten solar panels with frame heights ranging from 30mm to 45mm, simplifying stock management and project planning.
- Anodised Black Finish: The sleek, durable black finish provides a premium aesthetic that perfectly complements black-framed solar modules, enhancing the overall look of the installation.
- Tool-Free Installation: Engineered for rapid, intuitive, and tool-free mounting within Esdec ClickFit Evo and FlatFix Fusion systems, boosting on-site efficiency.
- Esdec System Integration: Fully compatible with the renowned Esdec ClickFit Evo and FlatFix Fusion mounting systems, ensuring seamless functionality and system integrity.
Technical Specifications
- Product Code: 1003022-B
- Material: High-grade anodised aluminium for corrosion resistance and durability.
- Finish: Black anodised.
- Panel Frame Height Compatibility: 30mm - 45mm.
- Bonding Feature: Integrated M6 grounding pin for electrical continuity.
- System Compatibility: Designed for use within Esdec FlatFix and ClickFit mounting systems.
- Recommended Torque: Always refer to the specific Esdec installation manual for precise torque settings, typically within 8-10 Nm for secure fastening.
- Standards: Engineered to contribute to installations compliant with relevant European standards (e.g., EN 1991 for load actions) when used as part of a complete Esdec system.
Installer Benefits
Choosing the Esdec Universal Mid Clamp Bonding Black offers tangible advantages for your solar projects:
- Accelerated Installation: The integrated bonding and tool-free design significantly reduce installation time and labour costs.
- Reduced SKU Complexity: Its universal fit for 30-45mm panels means fewer different clamp types to stock, simplifying inventory for wholesalers and installers alike.
- Enhanced Aesthetics: The black finish ensures a clean, cohesive look, particularly with black-framed PV modules, meeting client demands for discreet and attractive installations.
- Reliable Electrical Safety: The integrated grounding pin provides a dependable and compliant method for electrical bonding, enhancing the safety and longevity of the PV system.
- MCS Compliant System Contribution: Designed to support installations that meet the stringent requirements of the Microgeneration Certification Scheme (MCS), giving you peace of mind and supporting eligibility for government incentives.
- Proven Esdec Quality: Benefit from Esdec's reputation for robust, high-performance components that ensure long-term system stability and client satisfaction. For other innovative Esdec components, explore options like the Esdec ClickFit Evo MLPE Clip.
Frequently Asked Questions
What panel frame heights does this Esdec mid clamp support?
The Esdec Universal Mid Clamp Bonding Black (1003022-B) is designed for universal compatibility with solar panels featuring frame heights between 30mm and 45mm.
How does the integrated bonding feature work?
This mid clamp includes an integrated grounding pin that establishes electrical continuity between the solar panel frame and the mounting rail, eliminating the need for separate bonding clips or wires and simplifying the grounding process.
Is this clamp compatible with all Esdec mounting systems?
This universal mid clamp is specifically designed for seamless integration within the Esdec FlatFix and ClickFit mounting system ecosystems, ensuring optimal performance and compliance.
Why choose a black finish for solar panel clamps?
The anodised black finish offers superior aesthetics, allowing the clamp to blend discreetly with black-framed solar modules and dark roof tiles, resulting in a more visually appealing and streamlined PV installation.
Does this Esdec mid clamp contribute to MCS-compliant installations?
Yes, when used as part of a complete Esdec mounting system, the Esdec Universal Mid Clamp Bonding Black is designed to contribute to installations that meet the requirements for MCS certification.
Order Your Esdec Universal Mid Clamp Bonding Black Today
Equip your solar installation projects with the efficiency and aesthetic appeal of the Esdec Universal Mid Clamp Bonding Black (1003022-B). Streamline your workflow, enhance system aesthetics, and ensure reliable electrical bonding with this essential component. For competitive trade accounts and bulk pricing options, contact Evergy UK. Secure your supply of premium Esdec solar mounting components today.
