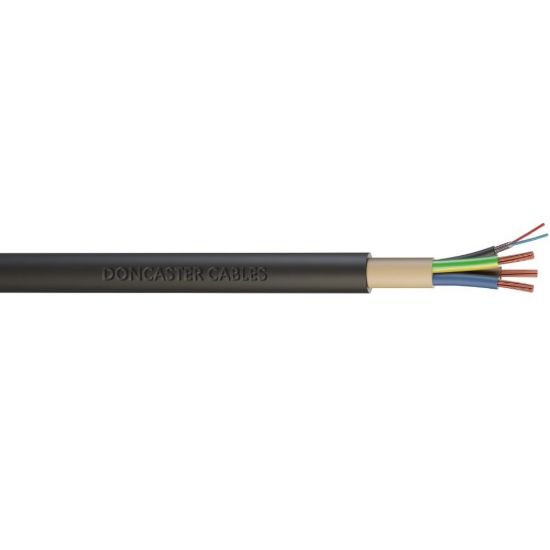

Get the precise amount of cable required for your single-phase EV charger installation with this cut-length EV-Ultra™ cable from Doncaster Cables. This variant handily combines robust 3 Core 6.0mm² power conductors (Live, Neutral, Earth) with a 1-pair (2 Core) 0.5mm² screened data cable, all within a single Low Smoke Halogen Free (LSHF) sheath. It simplifies the connection between your EV circuit protection and the charging unit.

Robust Power with Basic Data Communication

The 6.0mm² power cores are suitable for higher power single-phase chargers or longer cable runs where voltage drop might be a concern. The integrated 2-core screened data pair is ideal for chargers using simpler communication protocols like RS485, rather than requiring a full Ethernet connection. Combining these eliminates the need to install two separate cables, saving time and conduit space.

Cut-to-Length Convenience

Ordering by the metre allows you to purchase exactly the length needed for your specific installation run, reducing costly off-cut waste and ensuring a tidier job compared to using fixed-length drums.

LSHF for Enhanced Safety

Prioritising safety, this cable features an LSHF outer sheath. The product datasheet confirms this construction means significantly reduced smoke and toxic fume emission in the event of a fire compared to standard PVC cables. It meets the requirements of BS 7671 section 722 and power cores conform to BS EN 50525-2-11.

Why LAMPS Recommend This Product

This EV-Ultra™ cut-length cable offers specific advantages:

• Combines 3x6.0mm² power and a 2-core screened data pair in one cable.
• Available cut-to-length for minimal waste.
• Ideal for single-phase chargers needing 6mm² power and basic (e.g., RS485) data comms.
• LSHF sheath enhances safety in fire situations.
• Other variants include 3C 4.0mm² + Cat 5, 3C 6.0mm² + Cat 5, 3C 6.0mm² + Cat 5 SWA, and 5C 6.0mm² + Cat 5 (3-Phase).

Technical Specifications Overview

Based on the Doncaster Cables EV-Ultra™ datasheet:

• Part Code Ref:** EVU3C6TPPLSHF
• Power Cores: 3 x 6.0mm² (Brown, Blue, Green/Yellow)
• Data Cores: 1 x 1 Pair 0.5mm² (Screened)
• Outer Sheath: LSHF (Low Smoke Halogen Free)
• Nominal OD:** ~16.4mm (Requires appropriate size glands, e.g. M20/M25 - check specific gland range)

Refer to the full datasheet for complete specifications.

Order Your Exact EV Cable Length

Specify the length you need for this combined power and 2-core data EV-Ultra™ cable. Remember to select suitable circuit protection and glands for your installation.
