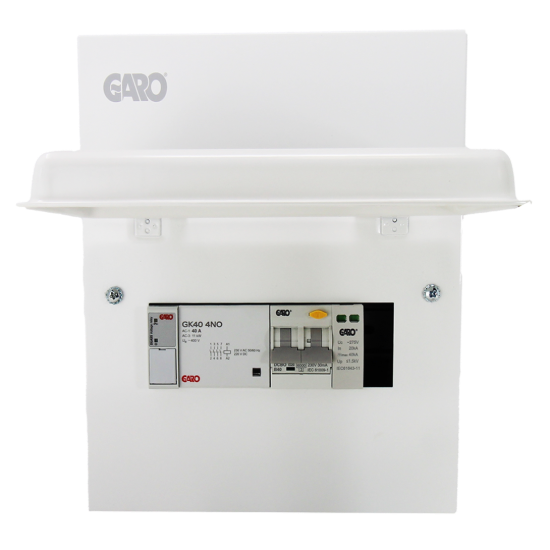

Garo GS8EV40PME: Indoor EV Consumer Unit with 40A Type A RCBO, SPD & PME Fault Detection
Install your indoor home EV charger with confidence using the Garo GS8EV40PME consumer unit. This 8-way metal enclosure (IP40 rated) provides a comprehensive protection package specifically designed for electric vehicle charging circuits. It includes a Type A RCBO, Type 2 Surge Protection, and crucial PME fault detection technology, ensuring compliance with BS 7671 (18th Edition) requirements.
Built-in PME Fault Detection for Enhanced Safety
This unit features Garo's integrated PME (Protective Multiple Earthing) fault detection relay. This vital safety component monitors the incoming supply voltage and disconnects the phase, neutral, and earth to the charger within 5 seconds if the voltage falls outside the 207V-253V range mentioned in the documentation. This protects against dangerous 'lost neutral' scenarios on TN-C-S systems and generally means a separate earth electrode isn't required for the installation, simplifying the process.
Combined RCBO and Surge Protection
The GS8EV40PME comes fitted with a 40A Type A RCBO, providing both 40A overload/short-circuit protection and 30mA Type A RCD protection (sensitive to AC and pulsating DC leakage) in one device. Additionally, it includes a Type 2 Surge Protection Device (SPD) to guard the EV charger against damaging voltage spikes.
Standard Metal Enclosure (IP40)
This model utilises Garo's standard 8-way metal consumer unit enclosure, rated at IP40. This makes it suitable for installation in dry, indoor environments like garages or utility rooms. The metal construction offers durability for the enclosed components.
Why Evergy Recommend This Product
The Garo GS8EV40PME is an excellent choice for indoor EV safety:
- Integrates 40A Type A RCBO, Type 2 SPD, and PME Fault Detection.
- PME detection feature enhances safety and simplifies installation (no earth rod usually needed).
- Housed in a standard IP40 metal enclosure for indoor use.
- Ensures compliance with BS 7671 for EV charger installations.
- For outdoor requirements, see the GCS8EV40PME (IP65). For a basic PME unit without SPD listed, consider the G6EV40PME.
Technical Specifications Overview
Based on the Garo GS8EV40PME datasheet:
- Model: GS8EV40PME
- Main Device: 40A Type A RCBO
- Additional Devices: PME Fault detection, Type 2 SPD
- Enclosure: 8-way Metal, IP40
- Standard: EN 61439-3, Compliant with BS 7671
The unit comes with a 5-year warranty on mechanical parts and a 2-year warranty on electronic components. Refer to the full datasheet for detailed wiring information.
Compliant Protection for Indoor EV Chargers
Choose the Garo GS8EV40PME for advanced safety features for your indoor EV charger. Ensure professional installation with appropriate EV cabling.
