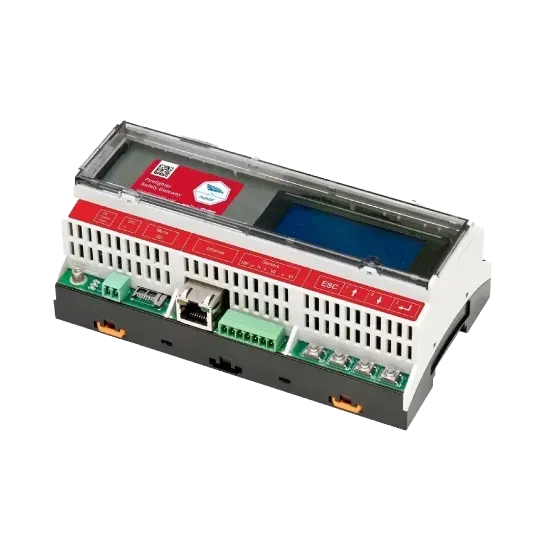

SolarEdge SE1000-CCG-F-S1: The Essential Firefighter Gateway for Rapid PV System Shutdown
Designed with emergency scenarios in mind, the SolarEdge SE1000-CCG-F-S1 Firefighter Gateway adds a crucial layer of safety to PV systems. It allows first responders or facility managers to immediately reduce voltage and disable power output from SolarEdge inverters and optimisers via a central, panel-integrated control point.
Instant Shutdown for Emergency Situations
When seconds matter, this gateway facilitates rapid shutdown of all system components through a connection to the building’s fire alarm system. It works by sending RS485 commands to inverters and optimisers, cutting off the DC current at module level and rendering the PV array electrically safe for fire or rescue teams.
Integration with Fire Alarm Control Panels
The unit includes two 5V alarm inputs and a ground terminal, allowing it to respond automatically to alarm signals. Once triggered, it disables SolarEdge inverters and limits voltage propagation across the system, ensuring code compliance and peace of mind for safety-conscious property owners.
Flexible Installation in Commercial and Public Buildings
Compact and lightweight, the SE1000-CCG-F-S1 can be mounted on a DIN rail or directly to a wall. Its IP20 indoor protection rating and universal power supply make it suitable for plant rooms, schools, warehouses, and other commercial installations with solar PV arrays.
Why Evergy Recommends This Product
As fire safety regulations evolve, solar system designers need to include effective rapid shutdown solutions. The SE1000-CCG-F-S1 meets that need with a robust, easy-to-integrate interface, protecting first responders while ensuring system compliance with building and fire codes.
Ideal for Safety-Focused Commercial Installations
This unit is ideal for solar projects in schools, offices, retail sites, and multi-occupancy buildings, anywhere where electrical safety for emergency services is a top priority. It offers an added layer of risk mitigation, especially where local authority sign-off depends on shutdown capability.
Technical Specifications
- Dimensions: 161.6 x 90 x 62 mm
- Weight: 0.5 kg
- Operating Temp: -20°C to +60°C
- Protection Rating: IP20 (indoor only)
To browse compatible components, view our Optimisers & Meters section or explore Solar Inverters to complete your system.
Need Help with Site Compliance?
Our technical team can advise on the most suitable shutdown configuration for your project. Get in touch for expert guidance on fire safety integration.
