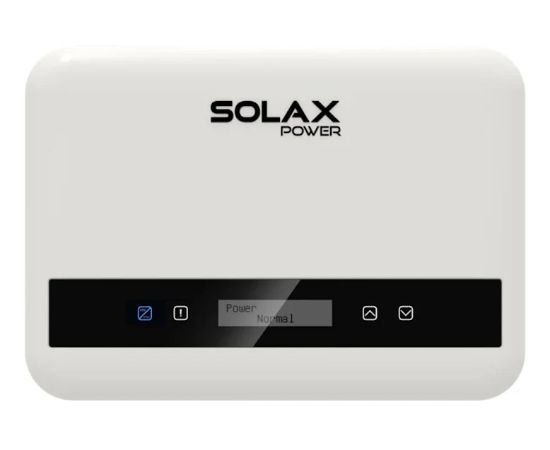

The SolaX X1 Mini G4 0.7kW Single Phase String Inverter is a refined choice for small-scale solar installations where performance and simplicity are key. Built for the latest generation of residential PV systems, it provides dependable single-phase power conversion with intelligent control and class-leading efficiency for British homes.
High-Efficiency Performance for British PV Systems
Delivering up to 97.1% peak efficiency, the X1 Mini G4 0.7kW maximises solar harvest from limited roof space. A wide 55–380V MPPT operating window and rapid tracking accuracy ensure consistent generation through low-light mornings, cloudy weather, or mixed-orientation panels common across UK housing. The low 70V start-up voltage allows generation to begin earlier each day, improving daily yield.
Built for Reliability & Protection
Encased within a robust IP65-rated shell, this inverter is purpose-built to withstand British weather. Fan-free natural cooling keeps noise below 25dB, making it perfect for external walls or internal plant rooms. Integrated surge protection, insulation monitoring, and residual-current safeguards maintain safe, long-term operation under G98 and EN 62109 compliance standards.
Key Features
- High conversion efficiency up to 97.1%
- Wide 55–380V MPPT range for improved low-light response
- IP65 weatherproof design with quiet, fan-free cooling
- Lightweight 6kg construction for quick wall mounting
- Optional Wi-Fi/LAN connectivity via SolaX Cloud monitoring
- Full G98 and EN 62109 compliance for UK grid use
If you’re wondering how efficient the X1 Mini G4 0.7kW remains under British skies, its low-voltage start-up and precise MPPT tracking keep energy flowing even during early-morning and overcast periods — a clear advantage for northern installations where sunlight is often variable.
Specification data verified from SolaX Power X1 Mini G4 datasheet (v1.1).
Seamless Integration with Solar Panels & Battery Systems
The SolaX X1 Mini G4 0.7kW inverter connects effortlessly with quality solar panels and battery-ready systems, giving installers and homeowners flexibility for future expansion. Its single-MPPT architecture suits compact roof layouts, garages, or small commercial arrays, offering a straightforward route to clean energy production. When paired with compatible battery storage via the SolaX ecosystem, it supports efficient DC coupling for enhanced self-consumption and reduced export loss.
Smart Monitoring & Connectivity
Monitoring is intuitive with SolaX Cloud — accessible through Wi-Fi, LAN, or optional 4G communication modules. Installers can view performance data, energy yield, and grid interaction in real time, simplifying commissioning and maintenance. Communication ports include RS485 and DRM interfaces, allowing flexible integration with meters, optimisers, or external monitoring platforms.
Compact Design & Practical Installation
Compact at 267×328×116mm and weighing just 6kg, the X1 Mini G4 offers remarkable power density in a small footprint. The IP65 aluminium enclosure provides weatherproof protection, while natural cooling keeps operation silent and maintenance minimal. Its plug-in terminal design and lightweight body make it particularly easy for installers working on small domestic projects or retrofit applications.
Installer Guidance & System Notes
String design & MPPT layout
Operate within the 55–380V MPPT window and keep current within safe limits. The single MPPT is ideal for small, uniform arrays with consistent panel orientation.
Battery configuration & sizing
The X1 Mini G4 can be integrated into the wider SolaX ecosystem for hybrid-ready applications. Typical UK homes may start with 3–6kWh of battery storage, expandable as energy needs grow.
Grid compliance & safety
Fully certified for G98 and EN 62109 operation, with built-in surge protection, RCMU, and insulation monitoring for safe and compliant installation in the UK.
Why We Recommend the SolaX X1 Mini G4 0.7kW
At LAMPS, we recommend the X1 Mini G4 0.7kW for small residential solar systems seeking dependable, silent operation and proven efficiency. Its build quality, low start-up voltage, and IP65 rating make it particularly well-suited to the British climate. Combined with intuitive SolaX Cloud monitoring and simple installation, it’s an outstanding option for compact domestic systems or small offices.
LAMPS is the renewable division of LAMPS Electrical, an independent UK wholesaler with over 15 years of trade experience supporting installers nationwide with reliable products, technical knowledge, and fast distribution.
Compare in the SolaX X1 Mini G4 Range
| Model |
Max PV (W) |
Rated AC (W) |
MPPTs |
MPPT Window (V) |
Max Eff. |
Dimensions (mm) |
Weight (kg) |
| X1 Mini G4 1.5kW |
1950 |
1500 |
1 |
55–380 |
97.3% |
267×328×116 |
6.0 |
| X1 Mini G4 2.5kW |
3250 |
2500 |
1 |
55–380 |
97.5% |
267×328×116 |
6.0 |
FAQs – SolaX X1 Mini G4 0.7kW
How does the X1 Mini G4 0.7kW differ from the 1.5kW version?
The 0.7kW model is ideal for small PV systems with lower generation capacity, while the 1.5kW version offers higher output for larger domestic arrays.
Is it compatible with SolaX batteries?
Yes — it can integrate within the SolaX hybrid ecosystem and operate alongside compatible battery modules for future upgrades.
Can it be installed outdoors?
Yes, its IP65 casing ensures protection from rain and dust, making it suitable for exterior wall or garage mounting.
How is performance monitored?
Through the SolaX Cloud platform, available via Wi-Fi, LAN, or optional 4G modules, providing real-time generation and system data.
What are the dimensions and weight?
The inverter measures 267×328×116mm and weighs approximately 6kg.
For professional advice or system design assistance, contact LAMPS — trusted UK distributor of SolaX, Growatt, Fox ESS and other leading solar brands.
