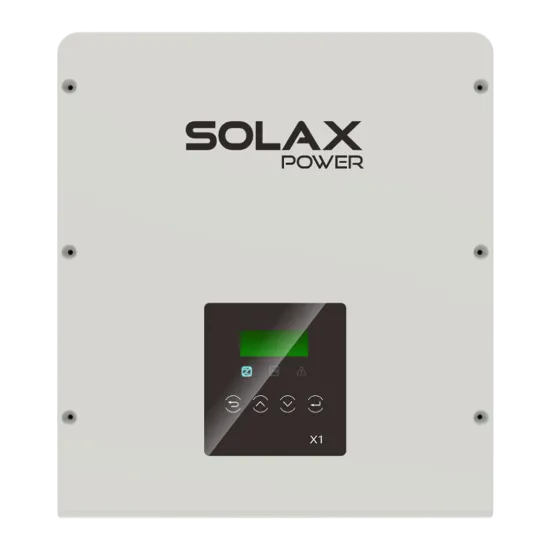

SolaX X1 SMART 8kW Single Phase Inverter with 3 MPPT – High-Efficiency Solar Power
Next-Generation Inverter for Smarter Solar Systems
Designed to meet the demands of modern UK solar installations, the SolaX X1 SMART 8kW inverter is a cutting-edge, single-phase solution with triple MPPTs. It’s built to extract maximum energy from diverse panel orientations while integrating seamlessly with future-ready technologies like smart EV chargers and heat pumps.
Smart Performance in Every Condition
This inverter handles 200% PV input oversizing and 110% AC output overloading, making it one of the most adaptable in its class. Whether your system features split arrays, varying angles, or partial shading, the three independent MPPT trackers keep performance optimised at all times.
Robust, Reliable, and Fully Integrated
With IP66-rated housing and passive natural cooling, the X1 SMART is made for long-term outdoor use in the UK's variable climate. It refreshes performance data every 10 seconds, supports global MPPT scanning, and integrates easily with smart meters and monitoring platforms. Plus, it’s compatible with parallel installations of up to 5 units—no external EMS required.
Designed for Safety and Compliance
- Type II DC and AC surge protection
- DC isolation and reverse polarity protection
- Grid monitoring with anti-islanding function
- Optional Arc Fault Circuit Interruption (AFCI)
- Residual current detection for user protection
Use Cases and Target Applications
The SolaX X1 SMART 8kW inverter is ideally suited to:
- Large residential homes with high consumption
- Properties with complex roof geometries
- Installations requiring battery-ready systems
- Smart homes with EV chargers and heat pumps
- Small-scale commercial and agricultural buildings
Dimensions & Build
- Height: 370 mm
- Width: 515 mm
- Depth: 170 mm
- Weight: 19.5 kg
- Ingress Protection: IP66 (outdoor rated)
- Cooling: Passive natural air flow
Technical Highlights
- Rated Output: 8000 W / Max Apparent Power: 8800 VA
- Max PV Input: 16 kWp / Max Voltage: 600 V
- MPPTs: 3 (1 string per tracker, 20 A each)
- Efficiency: 98.2% max / 97.5% EU
- Communication: WiFi, LAN, RS485, 4G, CT/Meter ready
- Certifications: G99, IEC 62109, AS 4777.2:2020, INMETRO
Why Evergy Recommends This Product
For solar customers looking to future-proof their system, the X1 SMART 8kW offers a compelling blend of flexibility, safety, and performance. It’s built for homes where power needs are growing—EVs, smart appliances, batteries—and integrates easily with Evergy battery storage systems. Plus, its high efficiency rating ensures strong returns even on cloudy days.
Box Contents
- SolaX X1 SMART 8kW inverter
- Wall mounting brackets
- User and installation manual
