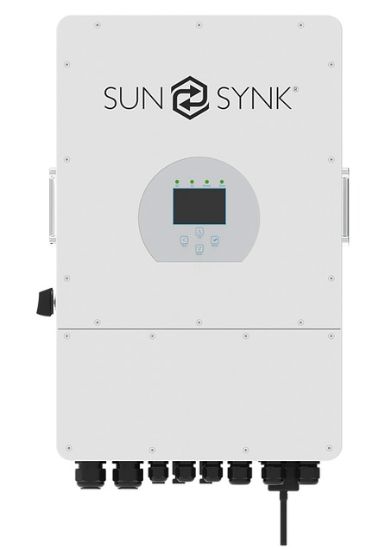

Sunsynk 12K-SG04LP3: The High-Capacity 12kW Hybrid Solar Inverter for Larger UK Properties
For larger homes or commercial premises demanding substantial power management capabilities, the Sunsynk 12K-SG04LP3 12kW three-phase hybrid inverter is the ultimate solution. This powerful PV inverter expertly integrates energy from solar panels, the grid, battery energy storage, and generators, ensuring optimal energy utilisation and providing pathways to lower energy costs and greater grid independence.
Master Your Energy Flow & Costs
Take full advantage of your solar generation by storing surplus energy in compatible 48V Li-ion or lead-acid batteries. The SYNK-12K-SG04LP3 enables you to use this stored power during peak demand periods or when grid prices are high, helping to combat rising energy tariffs. Its configurable operating modes allow you to prioritise energy sources, maximising self-consumption and providing reliable backup power during outages.
Exceptional Power for Demanding Applications
With a rated AC output of 12,000W and a peak AC power capability of 13,200W, this inverter is built to handle significant loads. It supports an extensive solar array with a maximum DC input power of 15,600W. According to the manufacturer's datasheet, its dual MPPT design ensures efficient energy harvesting across different panel strings or orientations, achieving a high maximum efficiency of 97.6%.
Intelligent Features & Solar Inverter Warranty
Monitor your system's performance effortlessly using the clear LCD screen and integrated RS485/Wi-Fi connectivity. The Sunsynk platform allows for remote monitoring and management. This robust unit is protected by an IP65-rated enclosure and features multiple built-in safety functions like surge protection (DC Type III / AC Type III) and residual current monitoring. Sunsynk provides a 5-year warranty for this inverter, as confirmed by the datasheet.
Scalability and Parallel Operation
Like its siblings, the SYNK-12K-SG04LP3 offers excellent scalability. Based on information from resellers, up to 16 units can be connected in parallel, making it suitable for very large domestic or commercial solar installations requiring substantial power capacity.
Why LAMPS Recommend This Product
The Sunsynk 12K-SG04LP3 stands out as a top-tier choice for high-demand three-phase hybrid systems. We recommend it for:
- Large residential properties with high energy consumption.
- Commercial and industrial applications requiring a powerful, reliable inverter.
- Systems incorporating significant battery energy storage capacity.
- Users demanding advanced power management and backup capabilities.
For applications with slightly lower power needs, consider the SYNK-10K-SG04LP3 or the SYNK-8K-SG04LP3.
Key Technical Specifications
- Rated AC Output Power: 12,000W
- Max. DC Input Power (PV): 15,600W
- MPPT Voltage Range: 200-650Vdc
- Max. Charging/Discharging Current: 240A
- Protection Degree: IP65
Consult the specifications tab or download the datasheet for comprehensive technical information.
Invest in Powerful, Flexible Energy Management
Choose the Sunsynk 12K-SG04LP3 for unparalleled three-phase hybrid performance. Complete your system with our selection of solar panels, compatible solar batteries, solar cabling, and mounting systems. Contact LAMPS for expert advice on designing your ideal solar energy solution.
