Sunsynk 20kW Hybrid Inverter: The Efficient Three-Phase Powerhouse for Large-Scale Solar Systems

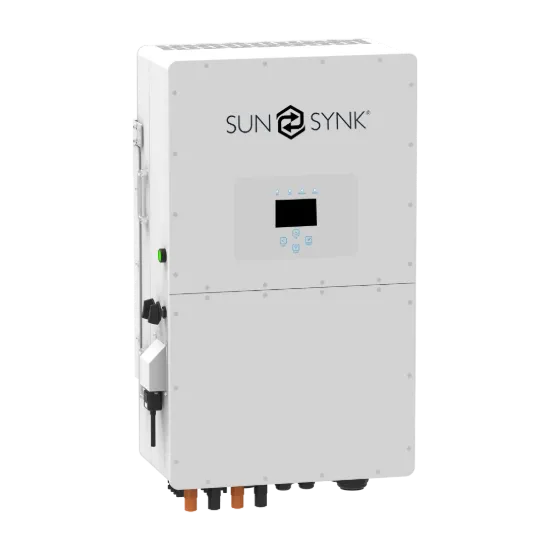

The Sunsynk 20kW High Voltage Three-Phase Hybrid Inverter delivers scalable, grid-interactive solar energy management for commercial buildings and large homes. This advanced hybrid unit allows simultaneous control of solar input, grid supply, and high-voltage battery storage—offering flexibility for both self-consumption and energy export.
Commercial-Grade Power with Precision Monitoring
With a 20kW output capacity, the SYNK-20K-SG01HP3-EU is tailored for larger systems where consistent load balancing is essential. It integrates seamlessly with three-phase supply and handles high loads across mixed commercial or high-demand residential environments.
Dual MPPTs for Efficient Energy Capture
Two independent Maximum Power Point Trackers (MPPTs) provide optimal energy harvesting from multiple PV array orientations or roof configurations. This ensures maximum efficiency even under varied sun conditions throughout the day.
High-Voltage Battery Integration
This inverter supports high-voltage battery systems (150–600V) with charge/discharge currents up to 50A. It’s compatible with leading lithium-ion battery brands and communicates via RS485 or CAN for full integration and BMS safety.
Built to Perform – Indoors or Out
- IP65 weatherproof rating for outdoor and indoor installations
- Advanced protections: short circuit, reverse polarity, insulation, and arc fault
- Supports peak shaving, load shifting, and zero-export functionality
Why Evergy Recommends This Product
The 20kW model is a reliable step-up for high-consumption applications, sitting comfortably between mid-range systems and larger three-phase units like the Sunsynk 50kW Three-Phase Hybrid Inverter. It balances affordability, power, and flexibility for growing energy needs.
Technical Specifications
- Max AC Output Power: 20,000W | Max AC Current: 32A
- PV Input Voltage Range: 200–850V | Max PV Input: 26,000W
- Battery Voltage Range: 150–600V | Charge/Discharge Current: 50A
- Dimensions: 408 × 638 × 237 mm | Net Weight: 32.5kg
For full system design support, contact Evergy’s technical team or explore our full range of solar inverters and battery storage solutions.
