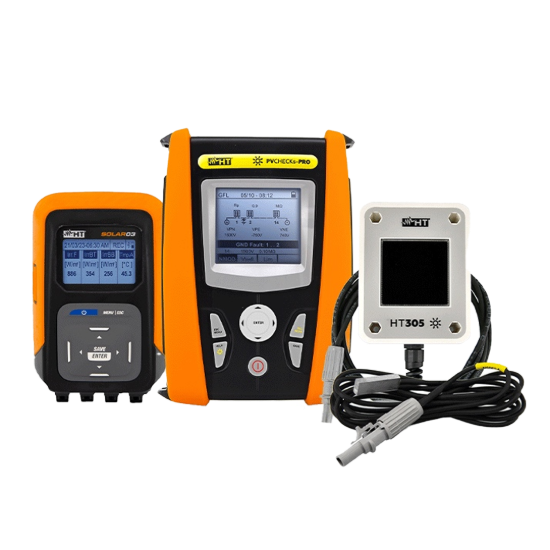

TIS PVCHECKS-PROPLUS: The Complete 1500V/40A Solar Commissioning Kit with Irradiance

Elevate your photovoltaic commissioning process with the TIS PVCHECKS-PROPLUS kit. Based on information from resellers like Green2Go, this package combines the advanced TIS PVCHECKS-PRO multifunction tester with the sophisticated SOLAR-03 remote unit, delivering a comprehensive solution for verifying safety, functionality, and performance of PV systems up to 1500V and 40A, fully compliant with IEC/EN62446-1.

PVCHECKS-PRO Tester Core Features

The heart of the kit is the PVCHECKS-PRO, providing rapid, automated testing:

• IEC/EN62446-1 Compliance: Performs Continuity (>200mA), Polarity, Voc (up to 1500V), Isc (up to 40A), and Insulation Resistance (up to 1500V) tests.
• Advanced Diagnostics: Includes the vital GFL (Ground Fault Locator) function to quickly identify the location of insulation faults.
• Efficiency: Features seamless mode for testing multiple strings in sequence and handles both single-facial and bi-facial modules.
• Internal Database & Memory: Stores module data and up to 999 test results.
• Connectivity: WiFi and Optical/USB for PC connection and compatibility with HTANALYSIS App.

SOLAR-03 Remote Unit for Environmental Data

The included SOLAR-03 unit wirelessly transmits crucial environmental data to the PVCHECKS-PRO via Bluetooth (up to 100m range), enabling performance analysis relative to Standard Test Conditions (STC):

• Irradiance Measurement: Accurately measures solar irradiance from 0-1400W/m² (requires suitable reference cell like HT305, often sold separately - *please verify kit contents*). Suitable for single and double-sided modules.
• Temperature Measurement: Records PV module and ambient temperature (requires suitable probe like PT305, often sold separately - *please verify kit contents*).
• Inclination Measurement: Measures the tilt angle of the PV modules.
• Data Logging & STC Comparison: Enables the PVCHECKS-PRO to extrapolate measured Voc and Isc values to STC and compare them against the manufacturer's nominal data for an OK/NO performance result. The SOLAR-03 itself has internal memory for logging (approx. 60 hours at 1s intervals).
• Rugged & Convenient: IP67 rated, powered by AA batteries, features USB-C for charging rechargeable batteries.

Why Evergy Recommends This Product

The PVCHECKS-PROPLUS kit is the ideal choice for professionals requiring comprehensive commissioning documentation and performance verification.

• All-in-One Solution: Combines high-spec safety/functionality testing with environmental measurements for full commissioning reports.
• STC Performance Verification: Accurately compare site performance against manufacturer specifications using real-time irradiance and temperature data relevant to energy tariff calculations.
• Advanced Fault Finding: The GFL function saves critical time diagnosing insulation issues on high-voltage strings connected to inverters.
• Future-Proof: 1500V/40A capability caters to the latest generation of PV technology.

Technical Highlights Summary

Combining information for both units:

• Max Test Voltage/Current: 1500V DC / 40A DC
• Key Tests: Insulation (up to 1500V), Continuity (>200mA), Polarity, Voc, Isc, GFL, Irradiance, Temperature, Inclination.
• Irradiance Range (SOLAR-03): 0-1400 W/m²
• Connectivity: WiFi, Optical/USB (Tester); Bluetooth BLE, USB-C (SOLAR-03)
• Safety Category (Tester): CAT III 1500V DC

Refer to individual product datasheets for full specifications if available.

What's Typically Included?

Based on reseller information, this kit bundles the PVCHECKS-PRO tester and its standard accessories (leads, batteries, charger, case etc.) with the SOLAR-03 remote unit. *Note: Specific reference cells (e.g., HT305) and temperature probes (e.g., PT305) for the SOLAR-03 may be required and might be sold separately - please confirm the exact contents of the kit you are purchasing.*

Get Complete Commissioning Confidence

Invest in the TIS PVCHECKS-PROPLUS kit for thorough testing and documentation of your high-voltage solar installations, from safety checks to STC performance. Explore related items like solar mounting and solar batteries. Contact us for more details.
